3-WAY VALVE(Square)
For multiple guns

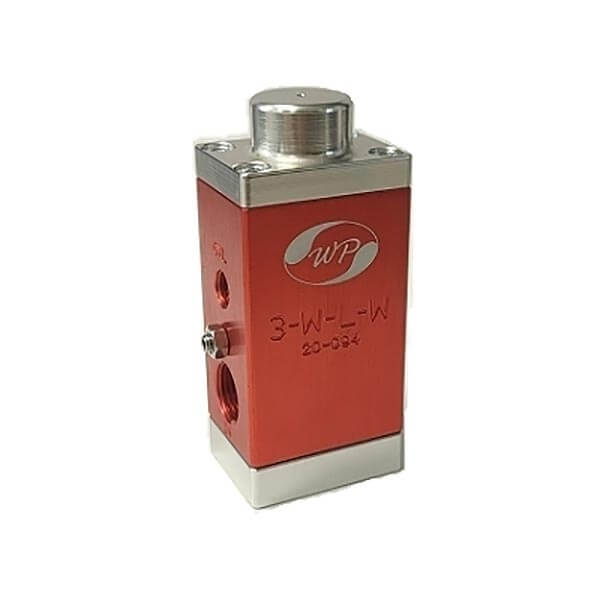

3-W-L-W
(Suitable for water and oil)
For multiple guns
2-W-L-W
(Suitable for water and oil)
For multiple guns
3-W-L-S
(Wear-resistant)
For multiple guns
2-W-L-S
(Wear-resistant)
For single-gun
3-W-S-W
(Suitable for water and oil)
For single-gun
2-W-S-W
(Suitable for water and oil)
For single-gun
3-W-S-S
(Wear-resistant)
For single-gun
2-W-S-S
(Wear-resistant)
Mini
3W-SS-W
(Suitable for water and oil)
Mini
2W-SS-W
(Suitable for water and oil)
- Use remote air control or PLC and other control methods to control the fluid (such as oil, paint or solvent) to its outlet or return, single use, can control the flow of paint supply, return design, keep the liquid flow without sedimentation; multi-group matching, It can be used as a feeding system for auto color change and auto (air or solvent) cleaning.
- The way valve has round and square models, which can be selected by customers. The square model can be used as an auto color changing system because of space saving. For the wear of the outer joint, wear-resistant models can be selected. The needle and the outer joint are made of SLD material, and the wear resistance is increased by heat treatment.
Application
- Fixed flow control
- Auto change color
- Auto cleaning color
- Using in two-component mixing system.
3-WAY VALVE(Square) Specifications
| Model | 3-W-L for multiple guns |
3-W-S For single gun |
3W-SS-W Suitable for color change or cleaning system mounted on gun - small size |
|---|---|---|---|
| Paint Inlet Size | 3/8" pt ( f ) | 1/4" pt ( f ) | 1/8" pt ( f ) |
| Paint Outlet Size | 3/8" ps ( m ) | 1/4" ps ( m ) | 1/4" ps ( m ) |
| Paint Return Size | 3/8"pt ( f ) | 1/4"pt ( f ) | 1/8"pt ( f ) |
| Inlet Size of Air Pressure | 1/8"pt ( f ) | 1/8"pt ( f ) | M5 |
| Max. Paint Pressure | 6 kg /cm2 | 6 kg /cm2 | 6kg /cm2 |
| Pressure Control Range | 4 kg /cm2 | 4 kg /cm2 | 4kg /cm2 |
| Max. Flow | 12 lpm | 2.2 lpm | 0.9 lpm |
| Size | W44.5*L34*H101mm | W38.1*L25.4*H82mm | W25.4*L19*H49mm |
| Net Weight | 350g | 180g | 50g |
| Wetted Parts | SUS304 / Aluminum / Teflon Wear-resistant type: The needle and connect are SLD (heat treatment) |
||
| Temperature Range | 5 – 80 °C | ||
Quick Color Change/Clean System
W-L series
(For multiple guns)
W-S series
(For single-gun)
W-SS series
(Mini)
Applications (2-color cleaning and color changing valve)
PS:Multi-color color change cleaning system
