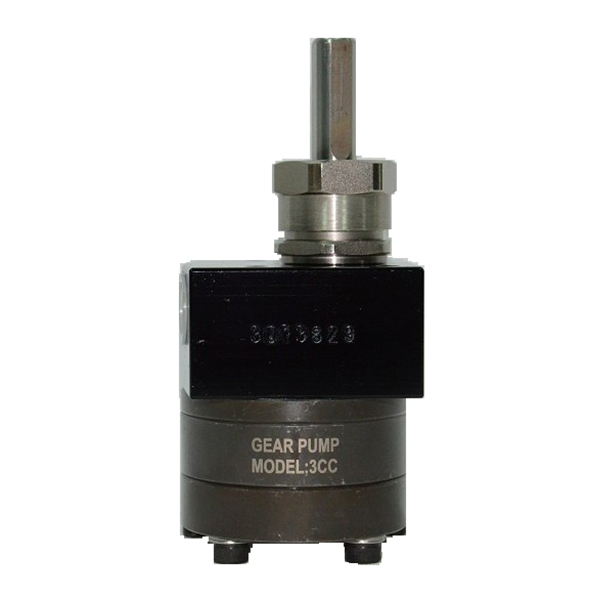

Fluid Convey Gear Pump
- A fixed volume of paint or fluid can be set for the delivery purpose,with the combination use of motor and converter will generates the best outcome.
- For special paint or fluid, K-pump can be customized accordingly.
Pump Size
.jpg "proimages/products/08Gear_Pump/08-01K-PUMP/08-01-01K-PUMP(0.4cc).jpg")
0.4cc
.jpg "proimages/products/08Gear_Pump/08-01K-PUMP/08-01-02K-PUMP(0.5cc).jpg")
0.5cc
.jpg "proimages/products/08Gear_Pump/08-01K-PUMP/08-01-03K-PUMP(1.5cc).jpg")
1.5cc
.jpg "proimages/products/08Gear_Pump/08-01K-PUMP/08-01-04K-PUMP(3cc).jpg")
3cc
.jpg "proimages/products/08Gear_Pump/08-01K-PUMP/08-01-05K-PUMP(5cc).jpg")
5cc
Fluid Convey Gear Pump Specifications
| Paint Outlet Size | 3/8" pt ( f ) |
|---|---|
| Paint Inlet Size | 3/8" pt ( f ) |
| Temperature Range | 5- 70 °C |
| Mix. Rotation Speed | 250 RPM |
| Material | SKD11 |
| Pump Size | 0.4cc 131 x 64mm 1.6 kg |
| 0.5cc 131 x 64mm 1.6 kg | |
| 1.5cc 137 x 64mm 1.7 kg | |
| 3cc 143 x 64mm 1.85kg | |
| 5cc 155 x 64mm 2.05kg |
