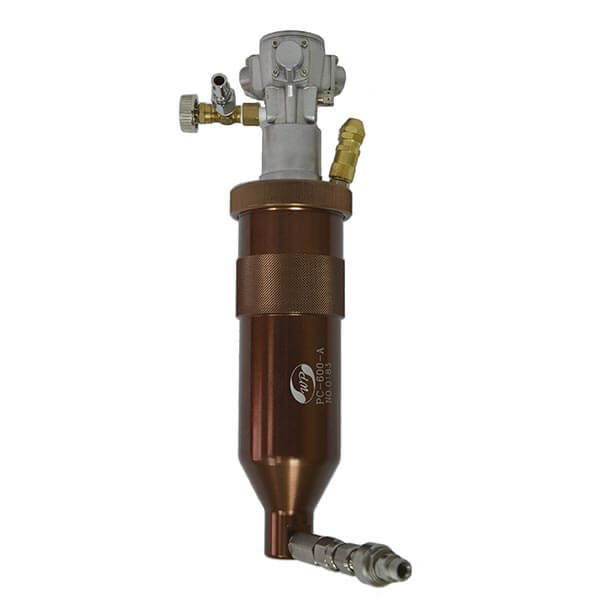

Name : Paint Pressure Cup
(Agitator Type)
Model : PC-600A
  • Simple and easy to operation.
  • Easy to cleaning, change the color fast.
  • Saves the massive clean solvent.
  • The paint pressure is stable and adjustment fast convenient.
  • Has the mix function, can the uniform mixing coating and the solvent.

Application

  • Suitable for few diverse of work-piece.
  • When operation must use many kinds of paint.
  • For the sample and the development part use.
  • The paint has when the precipitation condition uses.

Accessories

  • Paint cup:1set

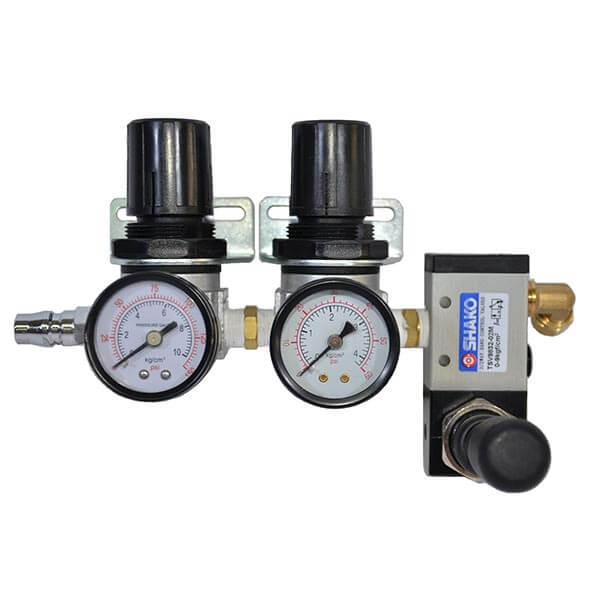

  • Air pressure controller:1set
  • Fixed frame:1set
  • Low pressure paint quick connect:1set
  • Air quick connect:1set
  • Air motor agitator:1set
proimages/products/09Coating_Equipment/09-06-01PC-600A.jpg
Paint Pressure Cup (Agitator Type) Specifications
Model PC-600A
Material Aluminum A6061
Size Ø89x390mmL
Air Inlet Size 1/4"PT
Fluid Outlet 1/4"PT
Capacity 600cc
Agitator Rotational Speed 0-1000RPM
Weight (Excluding Air Pressure Controller) 190g
Pressure Resistance 5kg/cm²
